Specification

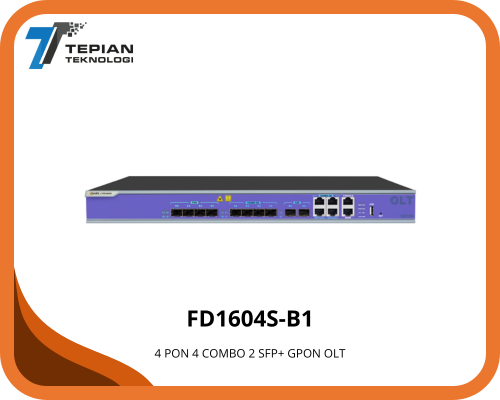

Model FD1604S-B1
Uplink Port COMBO port :
4 10/100/1000M auto-negotiation Ethernet ports
4 SFP interfaces
10-Gigabit : 2 SFP+ interfaces
PON Port Quantity : 4
Physical interface : SFP
Interface type : ITU-TG.984.2 Class B+/Class C+
Max splitting ratio : GPON: 1:128
Management Port 1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port
USB Port 1 USB interface (It’s used to backup configuration, upgradeprogram and record log information)
Transmission distance 20KM
Port rate GPON:
Downstream: 2.5Gbps
Upstream: 1.25Gbps
Wavelength Forwarding: 1490nm
Receiving: 1310nm
Interface type SC/UPC
Fiber type 9/125μm SMF (Single Mode Fiber)
Light transmission power Class B+ : +1.5~+5dBm
Class C+ : +3 ~ +7dBm
Receiving sensitivity Class B+ : -28dBm
Class C+ : -30dBm
Saturation power Class B+ -8dBm
Class C+ -12dBm
Network management method Support CLI, SNMP, TELNET, SSH, WEB
Business capabilities - Support device log, device upgrade, device management, condition monitoring, configuration management, and user management
- Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on.
- PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.
- Layer 3 function: support static routing, dhcp-relay and vlanif configuration.
Backplane Bandwidth 63G
Power supply 220VAC :
AC : 100V ~ 240V, 47~63Hz

-48DC :
DC:-40V ~ -72V

BBU (Backup Battery Unit) :
DC: 11V ~ 14V
Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply.
Maximum Power 45W
Working temperature -15 ~ 50 C
Storage temperature -40 ~ 85 C
Ambient humidity 5 ~ 90% (Non-condensing)
