Specification

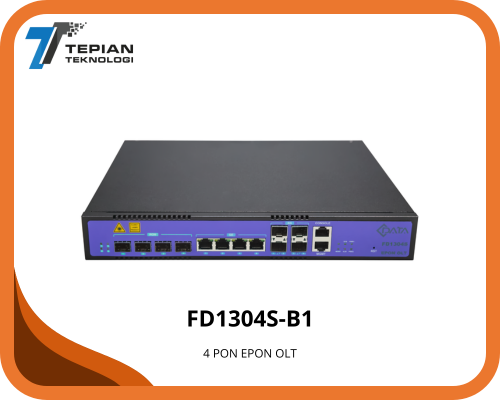

Model FD1304S
Uplink Port 4x 10/100/1000M auto-negotiation Ethernet ports
4x SFP+ 10G interfaces
PON Port Quantity : 4
Physical interface : SFP slot
Interface type : EPON: IEEE802.3ah
Max splitting ratio : EPON: 1:64
Management Port 1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port
Transmission distance 20KM
Port rate EPON: Symmetrical 1.25Gbps
Wavelength Forwarding: 1490nm
Receiving: 1310nm
Interface type SC/UPC
Fiber type 9/125μm SMF (Single Mode Fiber)
Light transmission power PX20+: 2~5.5dBm
Receiving sensitivity PX20+:-28dBm
Saturation power PX20+:-8dBm
Backplane Bandwidth 98G
Power supply AC : 100V ~ 240V, 47~63Hz
DC : -40 ~ -72VDC
Working temperature -15 ~ 50 C
Storage temperature -40 ~ 85 C
Ambient humidity 5 ~ 90% (Non-condensing)
