Specification

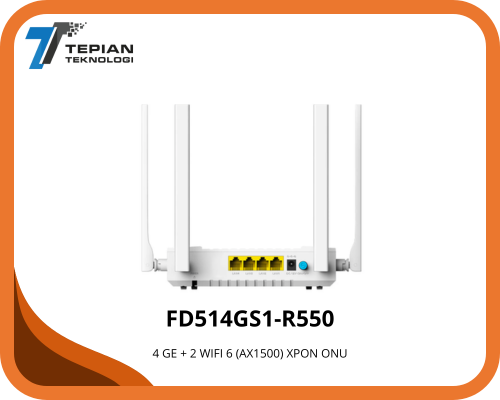

Model FD514GS1-R550
User Port (LAN) 4* 10/100/1000Mbps adaptive Ethernet port
Full/half duplex
Auto MDI/MDI-X
Indicators PWR / PON / LOS / LAN1-4 / INT / WIFI
PON Mode EPON : 1000BASE-PX20+ symmetric
GPON : FSAN G.984.2 standard,Class B+
Connector : UPC (Blue)
PON Rate EPON : 1.25Gbps (downstream/upstream)
GPON : 2.488Gbps/1.244Gbps (downstream/upstream)
Wavelength Transmit : 1310nm
Receiver : 1490nm
Receiving sensitivity EPON : -27dBm
GPON : -28dBm
Saturated power EPON : -3dBm
GPON : -8dBm
Transmitting power EPON : 0 ~ 4dBm
GPON : 0.5 ~ 5dBm
WIFI IEEE802.11b/g/n(2.4G)
2.4G: 40Mhz bandwidth maximum rate 300Mbps
2.4G EIRP : 24dBm

IEEE802.11a/n/ac/ax(5G)
5G: 80Mhz bandwidth maximum rate 1201Mbps
5 G EIRP : 22dBm

Total wireless rate is 1500Mbps
Power External 12VDC/1A power supply adapter
Power consumption ≤12W
Working temperature 0 to 40ºC
Operating humidity 10% ~ 90% (Non-condensing)
