Specification

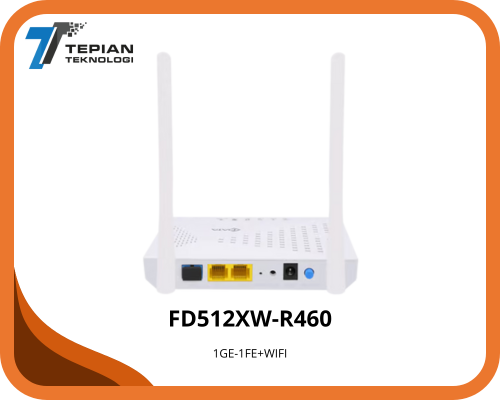

* Model FD512XW-X-R460
* GPON/EPON Port Single mode single fiber
GPON : FSAN G.984.2 standard, Class B+
EPON : 1000BASE-PX20+ symmetric
* Downstream/Upstream GPON : 2.488Gbps/1.244Gbps
EPON : 1.25Gbps
* Wavelength Transmit : 1310nm
* Receiver : 1490nm
* Port rate EPON: Symmetrical 1.25Gbps
* Wavelength Forwarding : 1490nm
Receiving : 1310nm
* Receiving sensitivity GPON : -28dBm
EPON : -27dBm
* Saturated power GPON : -8dBm
EPON : -3dBm
* Transmitting power GPON : 0.5 ~ 5dBm
EPON : 0 ~ 4dBm
* Receiving sensitivity PX20+ : -28dBm
* Saturation power PX20+ : -8dBm
* Backplane Bandwidth 98G

* User Port (LAN) 1*10/100 and 1 *10/100/1000Mbps adaptive Ethernet port
Full/half duplex
Auto MDI/MDI-X
* WIFI IEEE802.11b/g/n (2.4G)
Max rate: 300M (2.4G)
Max TX power: 2.4G : 17dBm
* Power External 12VDC/0.5A power supply adapter
* Power consumption <4W
* Operating temperature 0 to 40ºC
* Storage temperature -40 to 85ºC
* Operating humidity 10% to 90%(Non-condensing)
