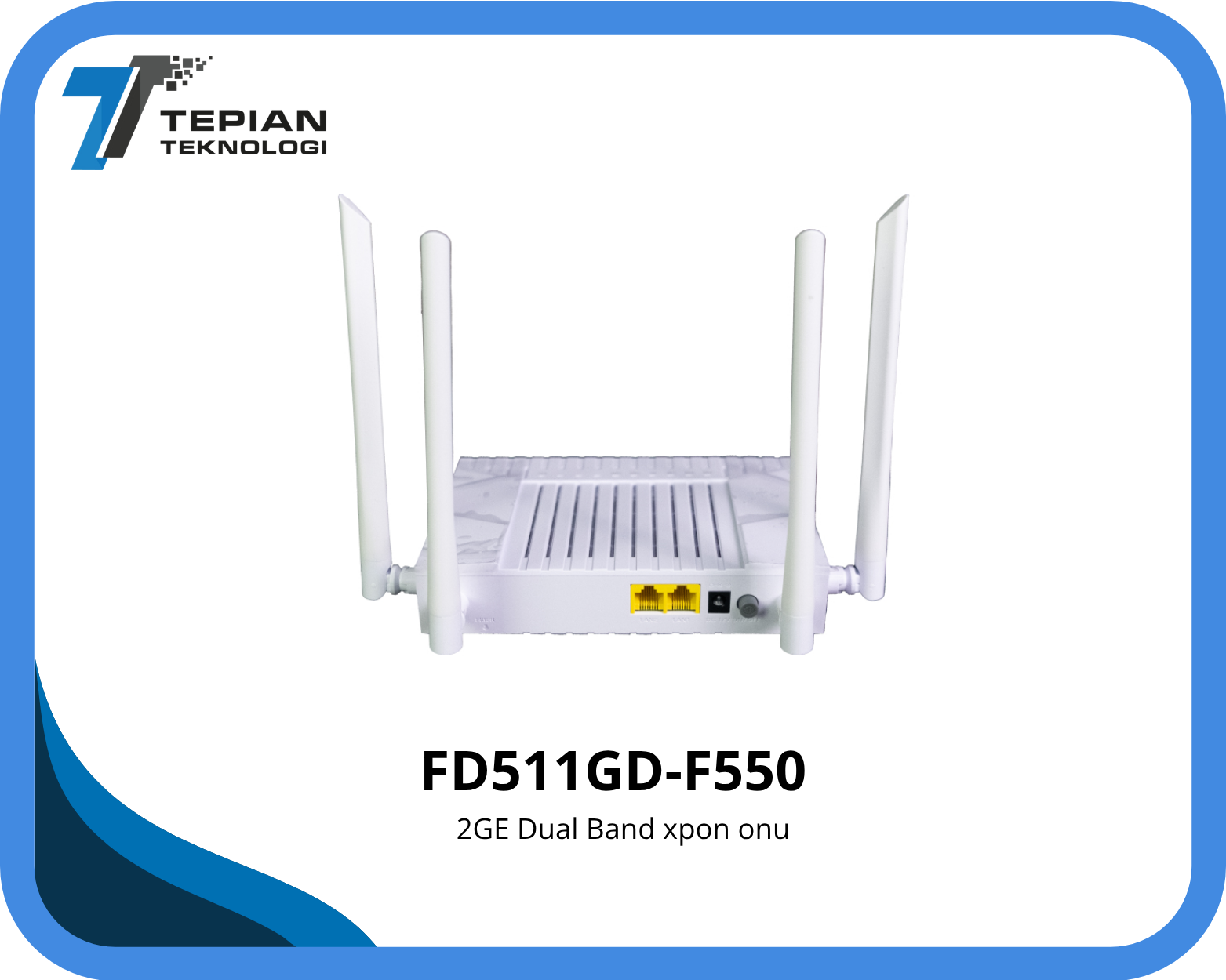

Model FD511GD-F550
User Port (LAN) RJ-45 connector
2*10/100/1000Mbps adaptive Ethernet port
Full/half duplex
Auto MDI/MDI-X
Indicators PWR / PON / LOS / LAN / INT / WIFI
PON Port PON Mode :
EPON : 1000BASE-PX20+ symmetric
GPON : FSAN G.984.2 standard,Class B+

PON Rate :
EPON : 1.25Gbps downstream/upstream
GPON : 2.488Gbps/1.244Gbps downstream/upstream

Wavelength :
Transmit : 1310nm
Receiver : 1490nm

Receiving sensitivity :
EPON : -27dBm
GPON : -28dBm

Saturated power :
EPON : -3dBm
GPON : -8dBm

Transmitting power :
EPON : 0~4dBm
GPON : 0.5~5dBm
WIFI IEEE802.11b/g/n(2.4G)
IEEE802.11a/n/ac(5G)
Max Rate Max rate: 300M(2.4G)
Max rate: 867Mbps(5G)
Max Power MAX TX power 2.4G:17dBm
MAX TX power 5G:17dBm
Power External 12VDC/1A power supply adapter
Power Consumption <11.4W
Working Temperature 0 to 40ºC
Operating Humidity 10% to 90%(Non-condensing)
Dimensions 170*120*41mm
