○ Hardware Parameter
Dimension 120mm×78mm×30m(L×W×H)
Net weight 0.15Kg
Operating condition Operating temp: -10 ~ +55°C
Operating humidity: 5~95% (non-condensed)
Storing condition Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non-condensed)
Power adapter DC 12V, 1A, external AC-DC power adaptor
Power supply ≤ 6W

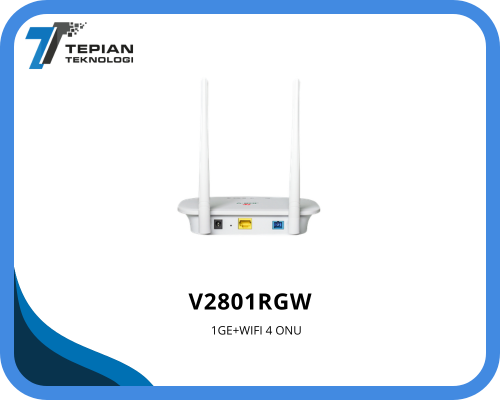

Interfaces 1GE+Wi-Fi 4
Indicators POWER, LOS, PON, LAN, Wi-Fi



Interface parameter
PON interface
1 XPON port(EPON PX20+ & GPON Class B+)
SC single mode, SC/UPC connector
TX optical power: 0～+4dBm
RX sensitivity: -27dBm
Overload optical power: -3dBm(EPON) or -8dBm (GPON)
Transmission distance: 20KM
LAN interface 1*GE Auto-negotiation RJ45 ports
Wi-Fi interface
IEEE802.11b/g/n(TX power:17dBm/16dBm/ 15dBm),300Mbps
Support 13 Channels



Function Data
PON mode XPON Dual mode , Can access to mainstream EPON/GPON OLTs
Software mode Routing mode
Wi-Fi
Wi-Fi Authentication: WEP/WAP-PSK(TKIP) /WAP2-PSK(AES)
Support: multiple SSID
Firewall DDOS, Filtering Based on ACL/MAC/ URL.
Layer2 802.1D & 802.1ad bridge, 802.1p Cos, 802.1Q VLAN.
Layer3 IPv4/IPv6, DHCP Client/Server, PPPoE, NAT , DMZ ,DDNS.
Multicast IGMP v1/v2/v3 , IGMP snooping
Security Flow & Storm control, Loop Detection
O&M WEB/TELNET/OAM/OMCI/TR069
